1.2 Date Night Assignment

Create a UML class diagram using Violet
1. Download the starting code. Date Night 1.2.zip
  Remember to unblock stylecop.analyzers.dll
2. Extract the contents of the zip file to the location of your choice.
3. How to 'fold in' class elements.

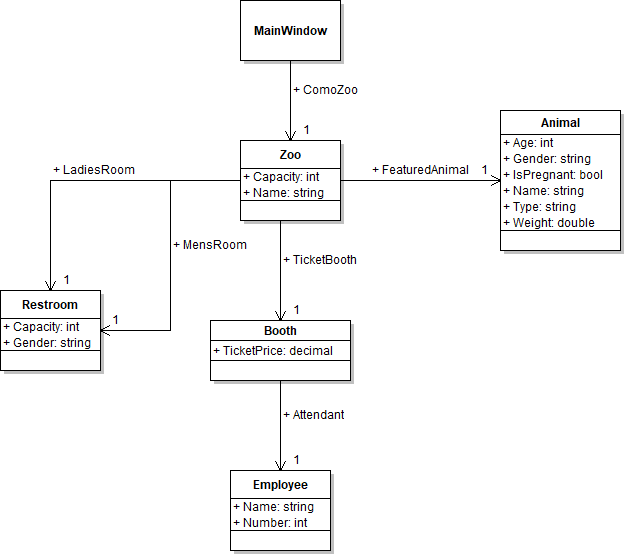

  Many times there are large class diagrams that take up a lot of space like the one below:

  Snip: Fold In

  But we only want/need to see one particular part of the structure so we 'fold in' parts of the structure that don't concern us. To do this, you will delete a node and then insert the field back into the node it is from using Field: Type notation.

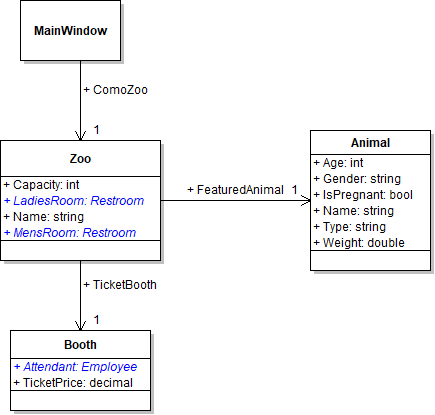

  Snip - Fold In

  In this case, we have folded in the two Restrooms and the Employee because we only want to know the structure of the Zoo, Animal and Booth.
4. Using the given starting code, create a UML class diagram to represent the classes listed below.
  Include all the fields for each class and references between them.

  Spacing and capitalization must match the code precisely to receive full credit.
  1. City
    1. Fold in the HairSalon and GasStation.
  2. House
  3. Pursued
  4. Pursuer
    1. Fold in the Car
Go to top
Create a UML object diagram using Violet
1. Set a breakpoint on the closing curly brace of the newHarryAndSallyDateButton_Click in the MainWindow.xaml.cs. Start the application and click the 'New Harry and Sally date' button.
2. Create nodes for and show relationships between Harry and his sub-objects. "Fold in" the following objects:
  - Harry's Vehicle
  - The Hometown's CornerStore
  - The Hometown's Salon

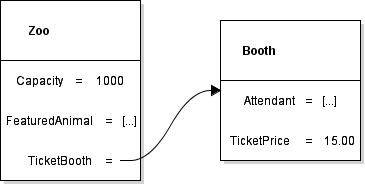

  Example of folding in using [...]

  Example

  In this example both the FeaturedAnimal and Attendant objects are folded in. We do this when we want to focus only on one particular part of a diagram.
Go to top
Save diagram and submit to Feedback System.
- 0.2.14 Submitting Violet UML Diagrams to the Feedback System
1. Save the diagrams by clicking File | Save in Violet.
  1. Make sure the naming convention of the .html file is: Date Night 1.2 LastName
  2. Ensure that Violet adds a .class.violet.html and/or .object.violet.html extension to the file when saving.
2. Zip the html files and submit the .zip file to the Feedback System.
  - Feedback System
  1. Zip the folder that contains both html files.
  2. Make sure the naming convention of the .zip file is: Date Night 1.2 LastName
3. Correct any mistakes based on Feedback.
  1. Re-open file in Violet.
  2. Correct any errors based upon feedback returned.
  3. Save.
  4. Re-zip the .html file.
  5. Re-submit to Feedback System.
  6. Repeat the process as necessary until all feedback is resolved.
4. Submit the resulting Feedback to Canvas as a URL.
