0.4 Parcheesi Assignment

Overview

Object diagrams represent a particular point in time meaning that they are always changing
depending on the state the application is in. This assignment uses Parcheesi to exemplify the
changing state of dice and player pieces.

Copy and paste your Parcheesi 0.3 assignment.
A. Rename the parent folder to 0.4 B. Rename the violet file to 0.4 Go to top
Add a Location field to keep track of where on the board the pieces are.
A. On every Piece node, add a field named Location. For each of the Red pieces, the value
should be 0 to represent them being on their start space. For each of the Blue pieces, the
value should be 1 to represent their start space.

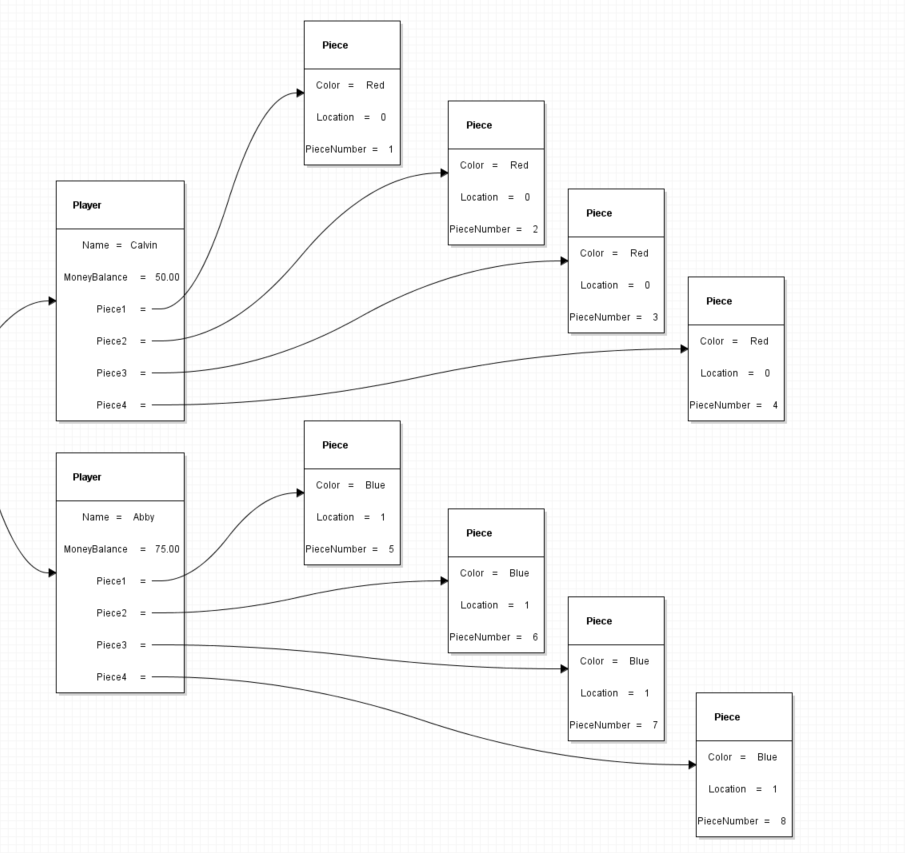

Add Location Fields
Go to top
Add two die to the GameBoard.
A. Add two fields to the GameBoard object named Die1 and Die2 and put their values are 0
to represents them not being rolled yet.

Add Die
Go to top
Roll the dice.

Object diagrams represent a particular point in time. As we have it currently, the dice are
unrolled and all pieces are in their start locations. So let's say we roll the dice once for Player1 and
get a 5 and a 3. One of their pieces can move from start and then move 3 spaces.
A. Change the value of Die1 to 5 and the value of Die2 to 3. B. Change the value of PieceNumber 1's Location from 0 to 7 (The space they move out to is
space 4 plus the 3 from the other die).

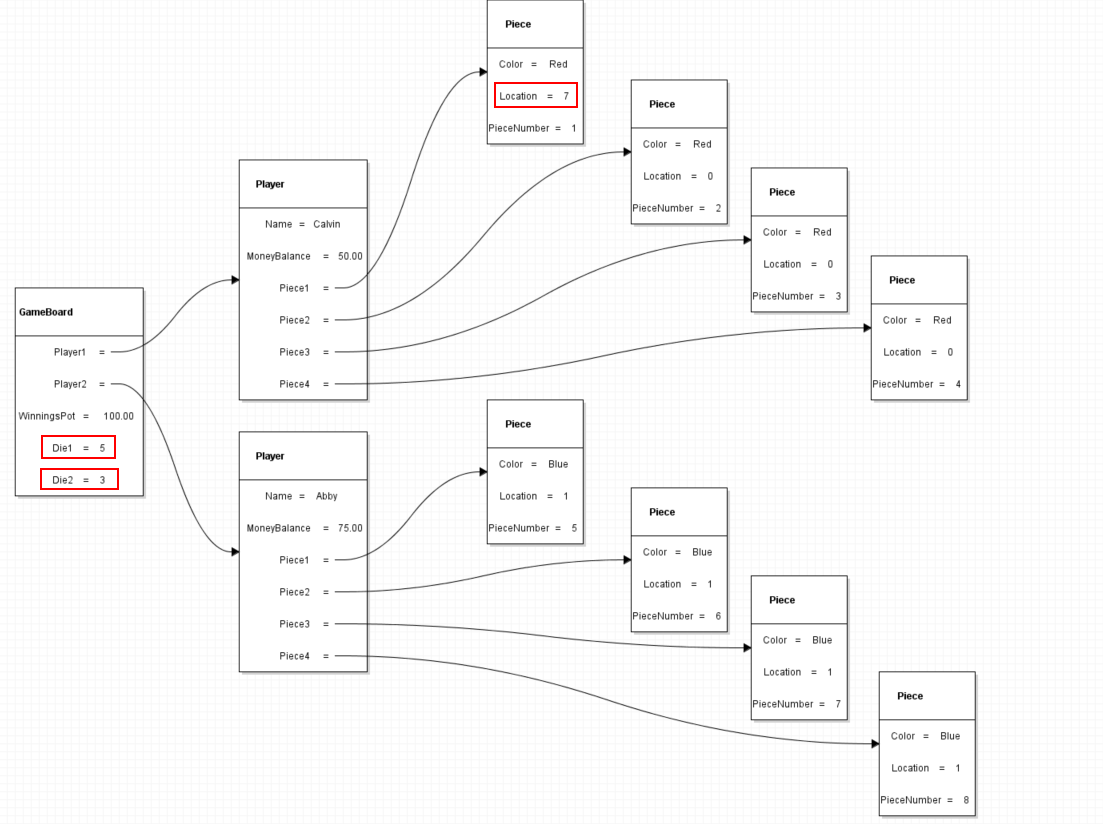

The object diagram below represents the state of the application after 1 roll.

Object Diagram after 1 Roll
C. Let's have Player2 roll. They get a 3 for Die1 and a 2 for Die2 meaning they can move a piece
from their start space. D. Change the value of Die1 to 3 and the value of Die2 to 2. E. Change the value of the Location field on PieceNumber 5 to 22 (that is the space on the
board outside of the Blue start).

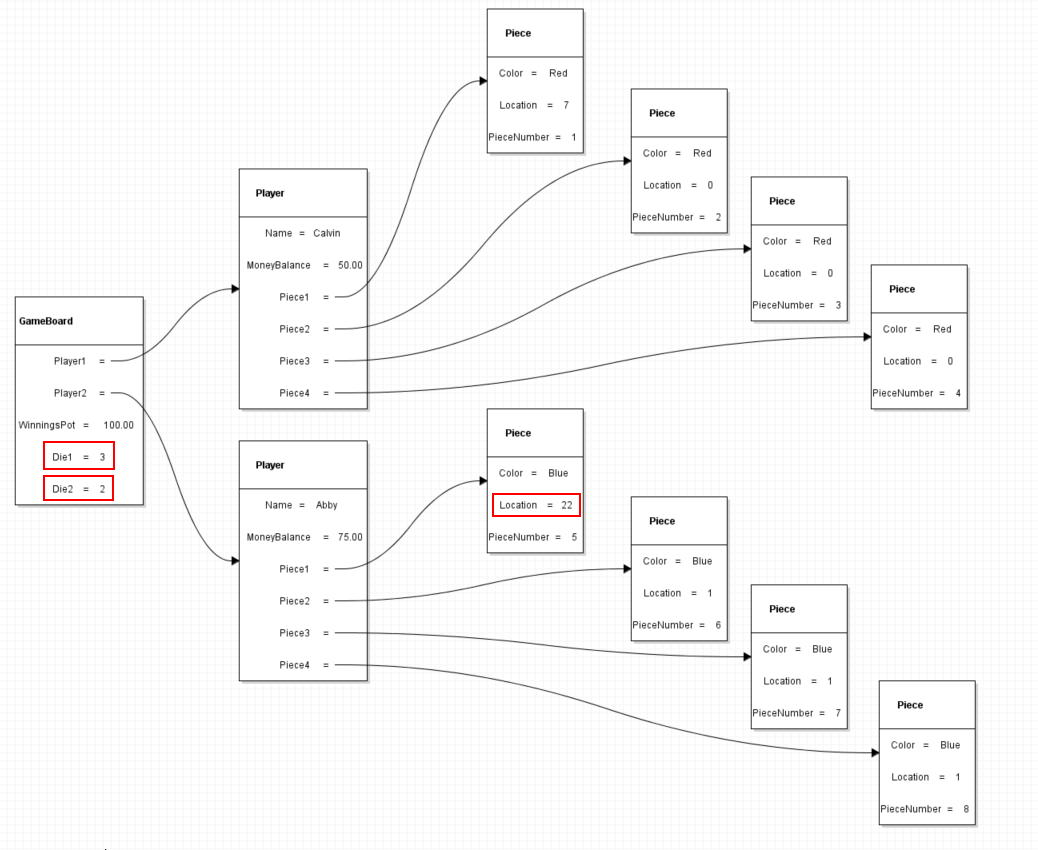

The object diagram below represents the state of the application after 2 rolls.

Second Roll
Go to top
Submit to the Feedback System.
A. Use what you have learned from Parcheesi 0.1 and 0.2 to upload this assignment to the
Feedback System and submit the resulting URL to Canvas. Go to top
