10-152-312 - Object-Oriented Programming 2

1.3 Zoo Assignment

1.3 Zoo Assignment: Package Diagram

Create/revise the classes as indicated by the following UML package (class) diagram.

PNG image of 1.3 Zoo UML detailed package (class)

Notes

Create WPF Window classes if class names end with Window; otherwise create basic classes.
Note that not all classes need to be on a class diagram; if classes which existed previously do not appear on this particular diagram, they should not be deleted, as they are simply not relevant to this assignment, but may again be used in future assignments.

1.3 Zoo Assignment: Class Diagram

Create/modify the classes as specified in the following UML class diagram.

PNG image of 1.3 Zoo UML class diagram

1.3 Zoo Assignment: Sequence Diagram

window_Loaded:

PNG image of the 1.3 Zoo UML sequence diagram #1

admitEthelButton_Click:

PNG image of the 1.3 Zoo UML sequence diagram #2

Grading and Submission

Build/compile your program
Debug/test your program against the following rubric:

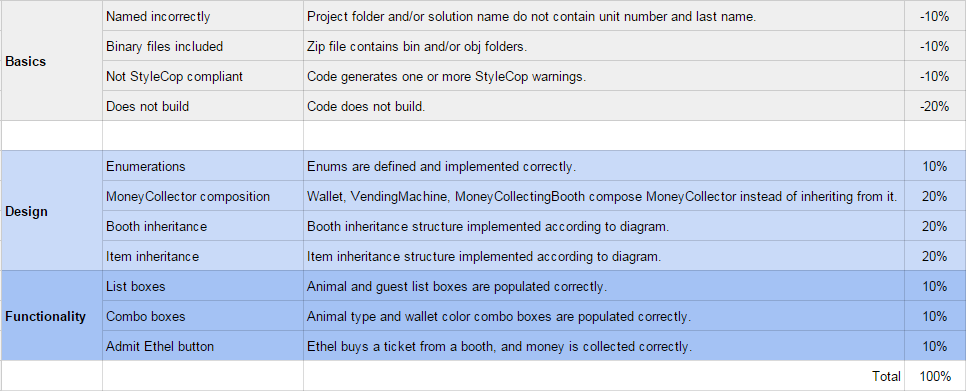

PNG image of 1.3 Zoo rubric

Make your code StyleCop-compliant
Close your Visual Studio solution
Compress your Visual Studio solution to a zip file
Submit the zip file via Blackboard
